Demo: DISTATIS

The data used here is available from http://cosmomvpa.org/datadb.zip

It is based on the following work: * Connolly et al (2012), Representation of biological classes in the human brain. Journal of Neuroscience, doi 10.1523/JNEUROSCI.5547-11.2012

Six categories (monkey, lemur, mallard, warbler, ladybug, lunamoth) during ten runs in an fMRI study.

This example shows the application of DISTATIS, which tries to find an optimal 'compromise' dissimilarity matrix across a set of observations (participants)

Reference: - Abdi, H., Valentin, D., O?Toole, A. J., & Edelman, B. (2005). DISTATIS: The analysis of multiple distance matrices. In Proceedings of the IEEE Computer Society: International conference on computer vision and pattern recognition, San Diego, CA, USA (pp. 42?47).

  1. For CoSMoMVPA's copyright information and license terms, #
  2. see the COPYING file distributed with CoSMoMVPA. #

Contents

Set data paths

The function cosmo_config() returns a struct containing paths to tutorial data. (Alternatively the paths can be set manually without using cosmo_config.)

config=cosmo_config();
study_path=fullfile(config.tutorial_data_path,'ak6');
output_path=config.output_data_path;

readme_fn=fullfile(study_path,'README');
cosmo_type(readme_fn);

% reset citation list
cosmo_check_external('-tic');
   #    #    #        #####     ######
  # #   #   #        #     #    #     #   ##   #####   ##
 #   #  #  #         #          #     #  #  #    #    #  #
#     # ###    ##### ######     #     # #    #   #   #    #
####### #  #         #     #    #     # ######   #   ######
#     # #   #        #     #    #     # #    #   #   #    #
#     # #    #        #####     ######  #    #   #   #    #

Overview
--------
fMRI responses to viewing images of six species in the animal kingdom,
used in Connollly et al. 2012.

Contents
--------

- s0[1-8]/                  This directory contains fMRI data from 8 of the 12
                            participants studied in the experiment reported in
                            Connolly et al. 2012 (Code-named 'AK6' for animal
                            kingdom, 6-species). Each subject's subdirectory
                            contains the following data:
   - glm_T_stats_perrun.nii A 60-volume file of EPI-data preprocessed using
                            AFNI up to and including fitting a general linear
                            model using 3dDeconvolve. Each volume contains the
                            t-statistics for the estimated response to a one
                            of the 6 stimulus categories. These estimates were
                            calculated independently for each of the 10 runs
                            in the experiment.
   - glm_T_stats_even.nii   Data derived from glm_T_stats_perrun.nii.
   - glm_T_stats_odd.nii    Each is a 6-volume file with the T-values averaged
                            across even and odd runs for each category.
   - brain.nii              Skull-stripped T1-weighted anatomical brain image.
   - brain_mask.nii         Whole-brain mask in EPI-space/resolution.
   - vt_mask.nii            Bilateral ventral temporal cortex mask similar to
                            that used in Connolly et al. 2012.
   - ev_mask.nii            Bilateral early visual cortex mask.
- models
   - behav_sim.mat          Matlab file with behavioural similarity ratings.
   - v1_model.mat           Matlab file with similarity values based on
                            low-level visual properties of the stimuli.

Methods
-------
The stimulus-specific volumes in the stats T-stats file are in the order

    monkey, lemur, mallard (duck), warbler, ladybug, lunamoth

for each of the ten runs.

Reference
---------
When using this dataset for any publication please cite:

Connolly, A. C. , Guntupalli, J. S. , Gors, J. , Hanke, M. , Halchenko, Y. O.,
Wu, Y. , Abdi, H. and Haxby, J. V. (2012). Representation of biological classes
in the human brain. Journal of Neuroscience, 32, 2608-2618.
[PDF] DOI: 10.1523/JNEUROSCI.5547-11.2012,

Contact
-------
Andrew C. Connolly <andrew.c.connolly |at| dartmouth.edu>

Preprocessing for DISTATIS: RSM analysis

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
subject_ids={'s01','s02','s03','s04','s05','s06','s07','s08'};
nsubjects=numel(subject_ids);

mask_label='vt_mask';

ds_rsms=cell(nsubjects,1); % allocate space for output
for subject_num=1:nsubjects
    subject_id=subject_ids{subject_num};

    % Code from here is pretty much identical to that above >>>

    % set path for this subject
    data_path=fullfile(study_path,subject_id);

    % Define data locations and load data from even and odd runs
    mask_fn=fullfile(data_path, [mask_label '.nii']); % vt mask

    % Use odd runs only
    data_fn=fullfile(data_path,'glm_T_stats_odd.nii');
    ds=cosmo_fmri_dataset(data_fn,'mask',mask_fn,...
                            'targets',1:6,'chunks',1);

    ds_rsm=cosmo_dissimilarity_matrix_measure(ds);

    % set chunks (one chunk per subject)
    ds_rsm.sa.chunks=subject_num*ones(size(ds_rsm.samples,1),1);
    ds_rsms{subject_num}=ds_rsm;
end

% combine data from all subjects
all_ds=cosmo_stack(ds_rsms);

Run DISTATIS

distatis=cosmo_distatis(all_ds);

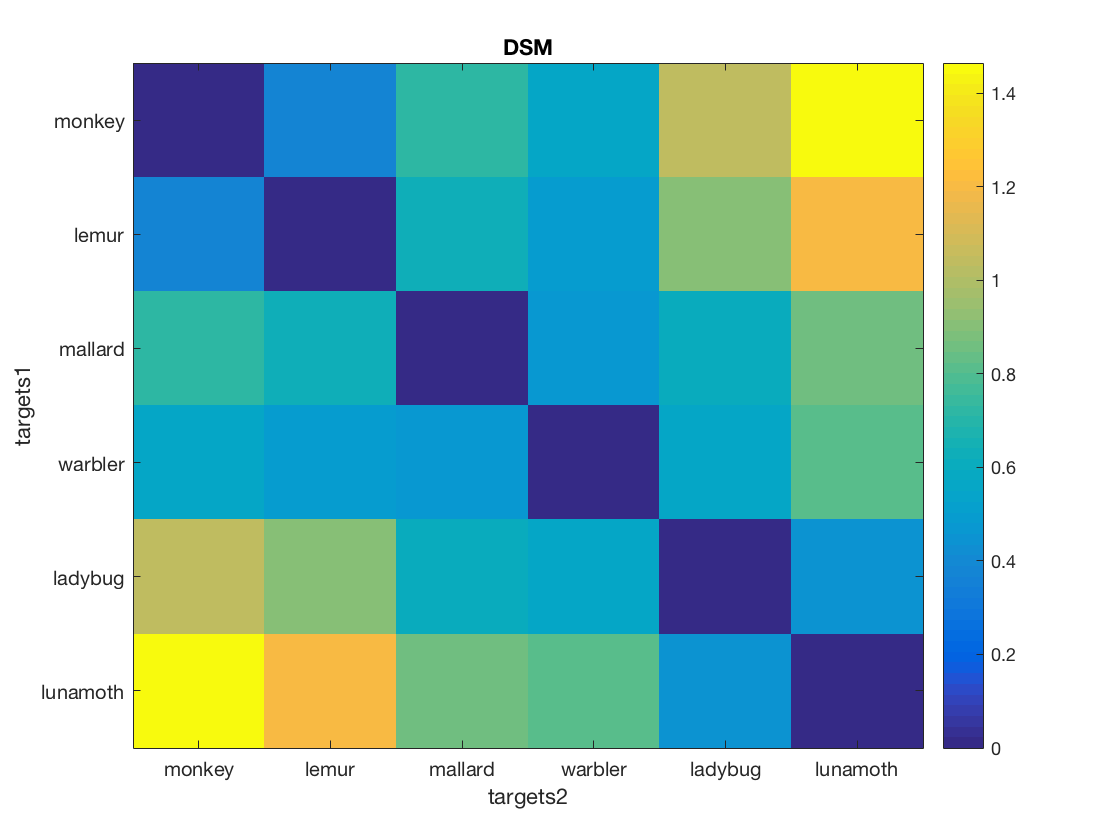

show comprimise distance matrix

[compromise_matrix,dim_labels,values]=cosmo_unflatten(distatis,1);

labels={'monkey', 'lemur', 'mallard', 'warbler', 'ladybug', 'lunamoth'};
n_labels=numel(labels);
figure();
imagesc(compromise_matrix)
title('DSM');
set(gca,'YTick',1:n_labels,'YTickLabel',labels);
set(gca,'XTick',1:n_labels,'XTickLabel',labels);
ylabel(dim_labels{1});
xlabel(dim_labels{2});
colorbar

% skip if stats toolbox is not present
if cosmo_check_external('@stats',false)

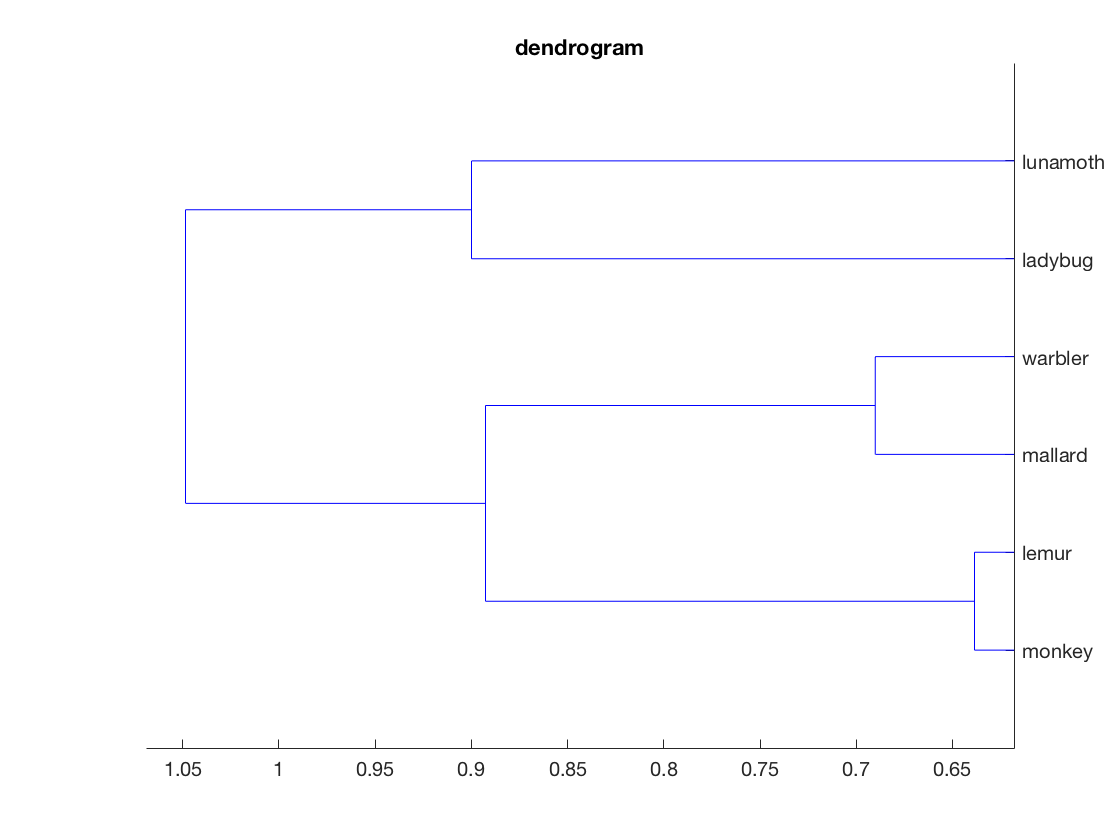

    figure();
    hclus = linkage(compromise_matrix);
    dendrogram(hclus,'labels',labels,'orientation','left');
    title('dendrogram');

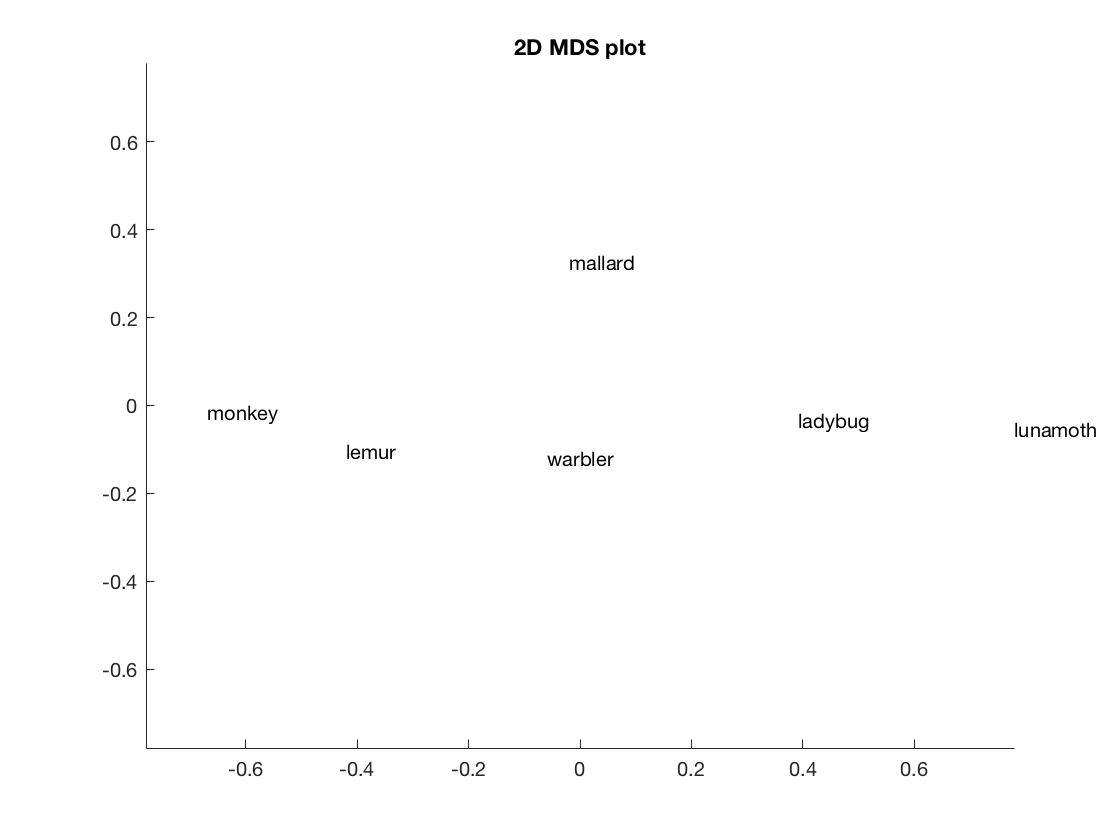

    figure();
    F = cmdscale(squareform(compromise_matrix));
    text(F(:,1), F(:,2), labels);
    title('2D MDS plot');
    mx = max(abs(F(:)));
    xlim([-mx mx]); ylim([-mx mx]);
end

show citation information

cosmo_check_external('-cite');
If you use CoSMoMVPA and/or some other toolboxes for a publication, please cite:

J. Shen. NIFTI toolbox. available online from http://www.mathworks.com/matlabcentral/fileexchange/8797-tools-for-nifti-and-analyze-image

Abdi, H., Valentin, D., O'Toole, A. J., Edelman, B. (2005). DISTATIS: The analysis of multiple distance matrices. In Proceedings of the IEEE Computer Society: International conference on computer vision and pattern recognition, San Diego, CA, USA (pp. 42-47). DISTATIS CoSMoMVPA implementation available online from http://cosmomvpa.org

N. N. Oosterhof, A. C. Connolly, J. V. Haxby (2016). CoSMoMVPA: multi-modal multivariate pattern analysis of neuroimaging data in Matlab / GNU Octave. Frontiers in Neuroinformatics, doi:10.3389/fninf.2016.00027.. CoSMoMVPA toolbox available online from http://cosmomvpa.org

The Mathworks, Natick, MA, United States. Matlab 9.1.0.441655 (R2016b) (September 7, 2016). available online from http://www.mathworks.com
