Searchlight analysis in the volume

This analysis is quite bare-bones - data is simulated to come directly from load_nii rather than through fmri_dataset, and voxel indices in each searchlight are computed directly in this script rather than using a helper function such as spherical_voxel_selection.

Note: for running searchlights it is recommended to use cosmo_searchlight and cosmo_spherical_neighborhood

Contents

Define input files and searchlight radius

radius = 3; % in voxel units

config = cosmo_config();
data_path = fullfile(config.tutorial_data_path, 'ak6', 's01');

half1_fn = fullfile(data_path, 'glm_T_stats_odd.nii');
half2_fn = fullfile(data_path, 'glm_T_stats_even.nii');
mask_fn = fullfile(data_path, 'brain_mask.nii');

Load the data and extract the data in the mask

ni_samples1 = load_nii(half1_fn);
ni_samples2 = load_nii(half2_fn);
ni_mask = load_nii(mask_fn);

% Get the volume data
half1_samples = ni_samples1.img;
half2_samples = ni_samples2.img;
mask = ni_mask.img;

% combine the two halves, and define the masks
samples = cat(4, half1_samples, half2_samples);
nsamples = size(samples, 4); % should be 6
half1_samples_mask = (1:nsamples) <= nsamples / 2;
half2_samples_mask = ~half1_samples_mask;

Searchlight data 'contrast' definition

Define how correlations values are going to be weighted mean zero, positive on diagonal, negative elsewhere. Note that this matrix has a mean of zero, so under the null hypothesis that correlations are equal on and off the diagonal, weighting these correlations by the contrast matrix and then summing them should give a mean of zero as well.

contrast_matrix = eye(6) - 1 / 6;

Define voxel offset positions in the searchlight

get the sphere offsets

sphere_offsets = cosmo_sphere_offsets(radius);
noffsets = size(sphere_offsets, 1);

Prepare for output

allocate space for data in searchlight once, then overwrite in for-loop below

sphere_data = zeros(nsamples, noffsets);

voldim = size(mask);
output = zeros(voldim);
visited = false(voldim);

Run the searchlight

% for pretty progress reporting
prev_msg = '';
clock_start = clock();

% run over voxels in all three spatial dimensions
for ii = 1:voldim(1)
    for jj = 1:voldim(2)
        for kk = 1:voldim(3)

            % if outside the mask, continue with next voxel
            % >@@>
            if ~mask(ii, jj, kk)
                continue
            end
            % <@@<

            % fill up the sphere_data matrix with data from the sphere
            % centered around location (ii, jj, kk).
            % for every valid position increment row_pos first, then
            % fill it with the sample data for of that position.
            % (a valid position p=[i, j, k] has 1 <= p(m) <= voldim(m) for
            % m=1, 2 and 3, and is not outside the mask).
            row_pos = 0;
            sphere_data(:) = NaN; % not necessary, but used to check validity of data
            % >@@>
            for mm = 1:noffsets
                ii_pos = ii + sphere_offsets(mm, 1);
                jj_pos = jj + sphere_offsets(mm, 2);
                kk_pos = kk + sphere_offsets(mm, 3);

                if ii_pos < 1 || ii_pos > voldim(1) || ...
                        jj_pos < 1 || kk_pos > voldim(2) || ...
                        kk_pos < 1 || kk_pos > voldim(3) || ...
                        ~mask(ii_pos, jj_pos, kk_pos)
                    continue
                end
                % go one position down
                row_pos = row_pos + 1;

                % overwrite existing data
                sphere_data(:, row_pos) = samples(ii_pos, jj_pos, kk_pos, :);
            end
            % <@@<

            % get data only as far down as we got voxels.
            selected_sphere_data = sphere_data(:, 1:row_pos);

            % a little sanity check
            if any(isnan(selected_sphere_data))
                error('found NaN - this should not happen');
            end

            % take the data from the two halves using the
            % half_{1,2}samples_mask
            % >@@>
            half1 = selected_sphere_data(half1_samples_mask, :);
            half2 = selected_sphere_data(half2_samples_mask, :);
            % <@@<
            % Compute correlations, fisher transform, then weigh them.
            % Store the sum of the weighted transformed correlations in the
            % 'output' array.
            %
            % Use cosmo_corr instead of corr for faster computations
            % >@@>
            c = cosmo_corr(half1', half2');
            fisher_c = atanh(c);
            weighted_c = contrast_matrix .* fisher_c;

            output(ii, jj, kk) = sum(weighted_c(:));
            % <@@<

            % set this voxel as visited
            visited(ii, jj, kk) = true;
        end
    end
    % Keep us updated on progress
    msg = sprintf('%d slices: mean %.3f', ii, mean(output(visited)));
    prev_msg = cosmo_show_progress(clock_start, ii / voldim(1), msg, prev_msg);
end

+00:00:03 [####################] -00:00:00  80 slices: mean 0.343

Save the results

ni_output = ni_samples1;
ni_output.img = output;
ni_output.hdr.dime.dim(5) = 1;

% use the following lines to store the output as a NIFTI file
% >> save_nii(ni_output,fullfile(data_path,'sphere_offsets_searchlight.nii'));

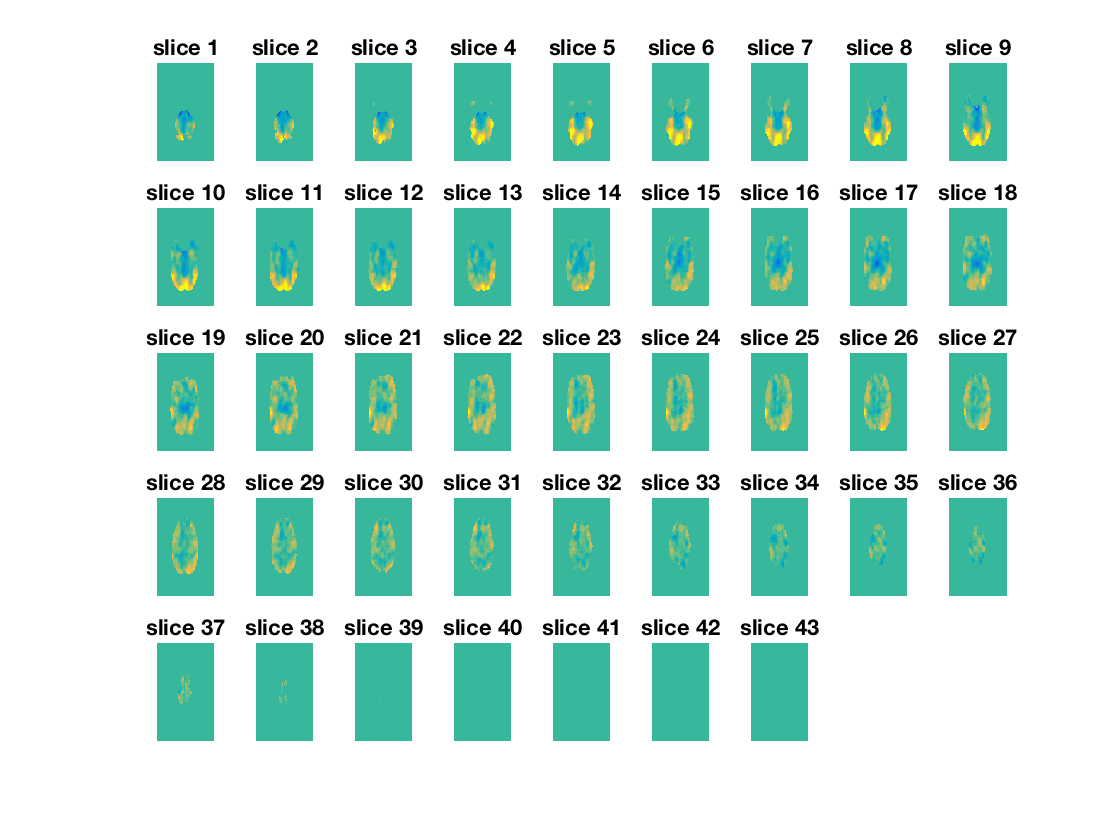

Plot the results as axial slices

nslices = voldim(3);
nrows = floor(.8 * sqrt(nslices));
ncols = ceil(nslices / nrows);

output_range = [-1 1] * 2;
for k = 1:nslices
    subplot(nrows, ncols, k);
    % orient with top side anterior
    imagesc(output(:, end:-1:1, k)', output_range);
    title(sprintf('slice %d', k));
    axis off;
end
